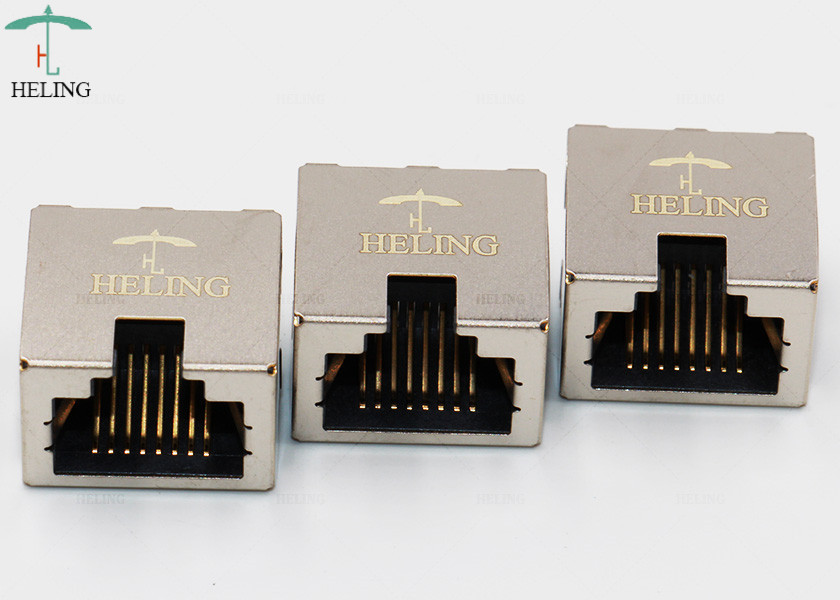

Low Profile RJ45 with LED, Offset, Right Angle, Tab Up, THT Solder, MJ88D-B011-KRVL206
Heling operates and specializes in the provision of Low Profile RJ45 networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of Low Profile RJ45 for your data and signal transmissions.
Our Low Profile RJ45 are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.
Our Low Profile RJ45 are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.
| Low Profile RJ45 with LED, Offset, Right Angle, Tab Up, THT Solder, MJ88D-B011-KRVL206 |
| Part Number: | MJ88D-B011-KRVL206 |
| Product Family: | Low profile RJ45 |
| Overview: | RJ45 1x1 ports 8P8C Jacks |
Description:
| 1x1 ports RJ45 connector, Right Angle, Tab Up,Shielded,Offset |
| Operating temprature range: -40℃-70℃ |
| |
| General |
| Series: | Low profile RJ45 |
| Numbers of ports: | 1x1 |
| Orientation: | Right angle(side entry) |
| Pin type: | THT solder |
| Positions/ Loaded contacts: | 8P8C |
| Latch: | Tab Up |
| LEDs: | Yellow/Green (Optional) |
| Shielded: | YES |
| Jack Height(Over PCB): | 5.8mm |
| Magnetic: | None |
| Performance category: | / |
| Power over Ethernet(PoE): | Non-PoE |
| Physical |
| Color-Resin: | Black |
| Durability(mating cycles max): | 750 |
| Material | Metal: | Phosphor bronze |
| Resin: | Liquid crystal polymer |
| Plating mating: | Gold over Nickel |
| Plating termination: | Gold Flash |
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional |
| Net Weight: | TBA |
| PCB: | FR4 |
| PCB locator: | Yes |
| PCB retention: | None |
| PCB retaining post: | T-post |
| PCB Thickness- Recommended | 1.6mm |
| Packaging type: | Tray |
| Temperature range: | -40℃-70℃ |
| Turns Ratio RX: | 1CT:1CT |
| Turns Ratio TX: | 1CT:1CT |
| Configuration RX: | T,C |
| Configuration TX: | T,C |
| RoHS compliant: | YES, RoHS AND Halogen-Free |
| Electrical |
| Current rating: | 1.5AMPS |
| Voltage rating: | 125V AC |
| Insulation Resistance: | 500MΩ mini |
| Withstand voltage: | 1000V RMS 60Hz |
| Contact Resistance: | 50mΩ Max |
| Grounding to PCB: | YES |
| Grounding to Panel: | YES |
