Through Hole Network RJ45 Multiport Connector Female 1 x 2 PCB Mount

Brand Name : HELING / OEM

Model Number : MJ5908-B112-BRF4

Certification : ISO9001 , RoHS , UL , CE , REACH

Place of Origin : China

MOQ : 1000

Price : Preferential & Competitive

Payment Terms : T / T， Paypal

Supply Ability : 300 K Pieces Per Month

Delivery Time : Stock or 1weeks

Packaging Details : Tray as your request

Series : Rj45 Multiple Port Connectors

Shielded Shell Material : Brass

Gender : Female

Port Configuration : 1 x 2

Entry Location : Side Entry

Latch Orientation : Tab Down

Packaging method : Tray

Contact Now

1 x 2 Ports RJ45 Multiple Port Connectors PCB Mount Network Connector Couplers

Description:

  • Model number: MJ5908-B112-BRF4
  • Series: RJ45 Multiple Port Connectors
  • Gender: RJ45 Female Jack
  • Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  • Mounting type : Through hole
  • Latch Orientation: Right Angle (Side Entry)
  • LED indicator : None

Specfication:

Part Number:　 MJ5908-B112-BRF4
Product Family: RJ45 Multiple Port Connectors
Overview: RJ45 1 x 2 8P8C Right Angle RJ45 Connector Black Housing
Description: 8 core 1x2 ports Right Angle RJ45 Jack connector, Shielded
　 Operating temprature range: -40℃-70℃　
　　 　　　　　　
General
Series: RJ45 Multiple Port Connectors
Numbers of ports: 1x2　
Orientation: Right Angle ( Side entry)　
Pin type: THT solder　
Positions/ Loaded contacts 8P8C　
Latch: Tab down　
LEDs: None
Shielded: Shielded
Jack Height: 13.4mm　
Magnetic: None　
Performance category:

Cat 5　
Power over Ethernet(PoE): Non-PoE　　　　　
Physical
Color-Resin: Black
Durability(mating cycles max): 750　
Material Metal: Phosphor bronze　
Resin: Liquid crystal polymer　
Plating termination: Gold Flash　
Plating min- mating: 6u"/15u"/30u" optional　
Net Weight: TBA　
PCB: FR4　
PCB locator: Yes　
PCB retention: None　
PCB retaining post: T-post　
PCB Thickness- Recommended 1.6mm　
Packaging type: Tray　
Temperature range: -40℃-70℃　
RoHS compliant YES, RoHS AND Halogen-Free　　　
Electrical
Current rating: 1.5AMPS　
Voltage rating: 125V AC　
Insulation Resistance: 500MΩ mini　
Withstand voltage: 1000V RMS 60Hz　
Contact Resistance: 50mΩ Max　
Grounding to PCB: YES　
Grounding to Panel: YES　

Documents:

*** CLICK HERE TO DOWNLOAD THE DRAWING

HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices

Product Images :

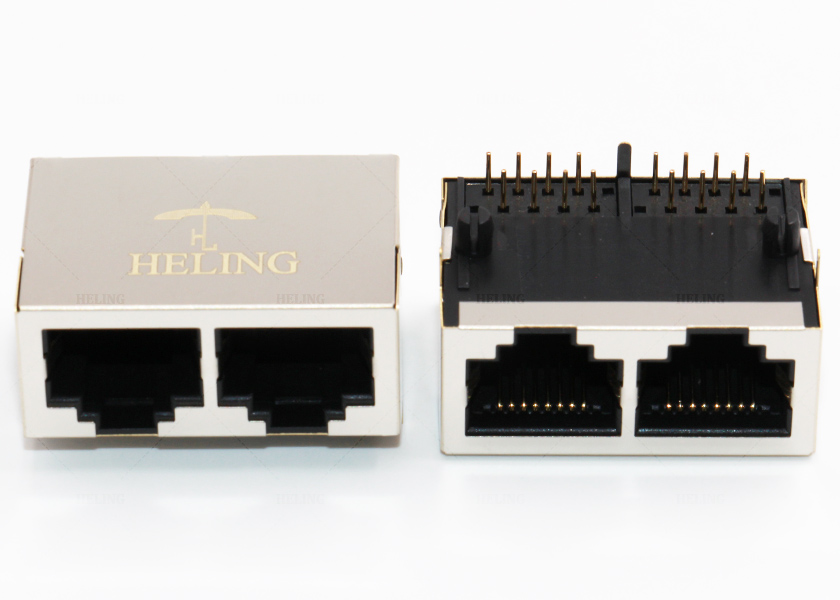

Through Hole Network RJ45 Multiport Connector Female 1 x 2 PCB Mount

Through Hole Network RJ45 Multiport Connector Female 1 x 2 PCB Mount
